Time to update those Royal Alloy GP (not MT) and replace the plastic indicators with Black or Chrome
Our Royal Alloy GP indicator kit comes available with Black or Chrome Indicators x 2, with our Billet Alloy Retro Vents to replace the existing indicators

Supplied with our Grey wiring loom plug and play connector.
This modification does require drilling location holes in the rear light unit to locate the new bullet indicators.
We have now included the Flasher Relay with this package FREE OF CHARGE

Also available with 4 replacement bullet Black or Chrome indicators and Billet Alloy Vents, with indicator relay which is also included FREE OF CHARGE

FREE POSTAGE ON THIS ITEM

GP SS66 Classic Gold Indicator Kit for the GP (not MT)

Name: GP SS66 Classic Gold Indicator Kit for the GP (not MT)
Brand: SmamtSpeed66
Price: 149.99 GBP
Availability: InStock

£149.99

Indicators & Vents

Quantity

Fitting instructions

Thank you for purchasing the SmartSpeed66 RA GP rear indicator kit with Billet Alloy Retro side vents

Fitting is very straight forward, but will require drilling your rear light unit

First remove your panels from the RA

Carefully unbolt the original plastic indicators from the panel, you will not need any part of these, dispose of them

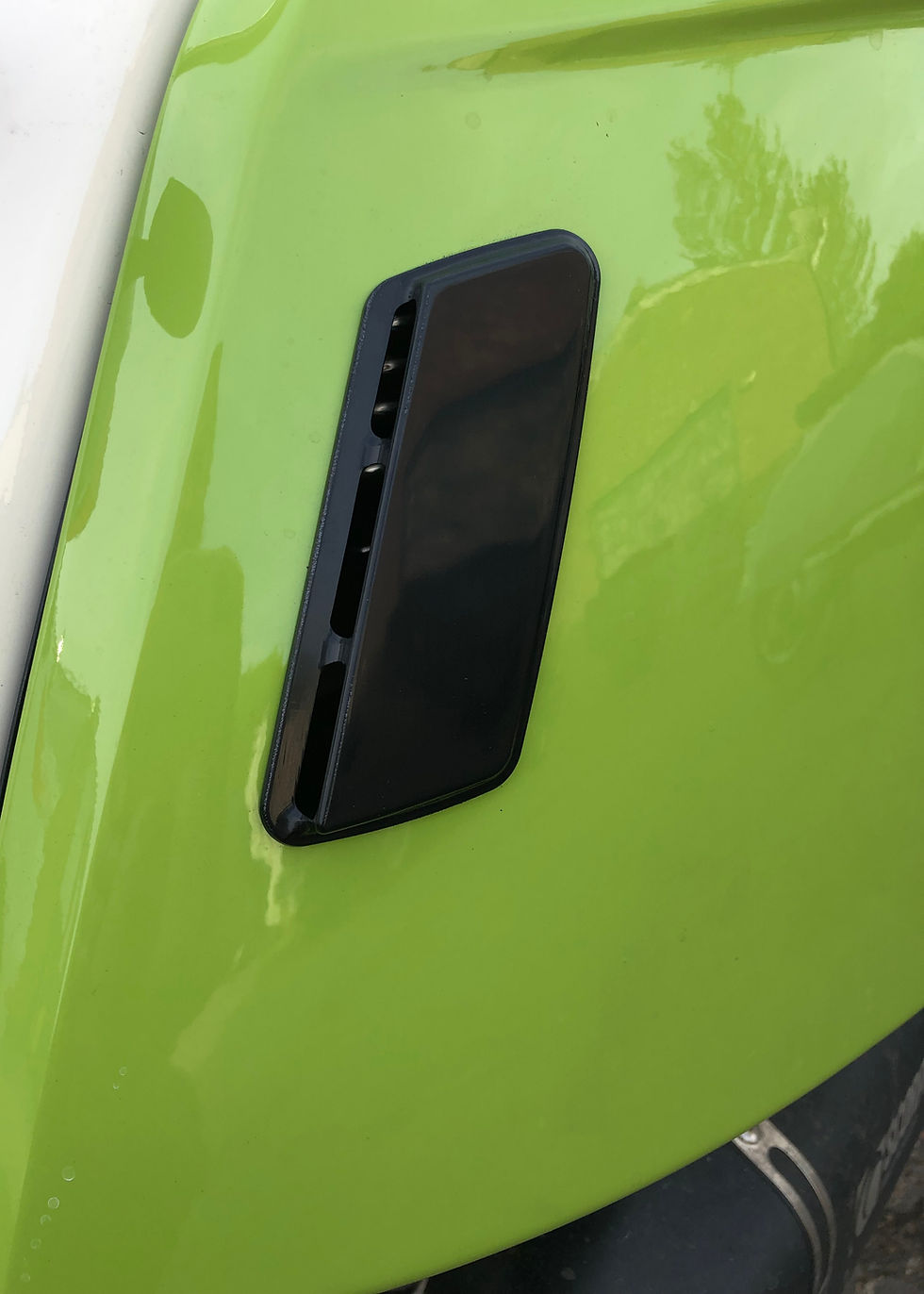

Replace the indicators with the Billet Allot Retro Vents, the Vents are handed so get them correct before fitting

Next remove your rear light assembly, this is held on by the two 8mm nuts (not the Larger 10mm or 13mm Nuts)

Thread the light unit and wires off the scooter.

The indicators are placed either side of the light unit, two holes will be required to be drilled with a 7mm drill bit (you can wiggle a 6mm if that is all you have, just to enlarge the hole a bit) . Please check the Photo for the correct position of these holes.

Then carefully thread the ready assembled wires and indicator through the holes, remember you need to pass the wires through the securing nut, tighten the securing nut (14mm thin spanner) if you do not have a spanner you can carefully twist the indicator light to tighten it up.

ASSEMBLY OF THE WIRING PLUG

Take your time at this stage to get the wires correctly fitted.

You will now need to assemble the Grey wiring plug, check the photos for the correct position of the silver wire connectors, pay close attention to the way the Grey plug is held they must be fitted correctly, The connector must be up the right way up and the Plug must also be the correct way up, study the photos. When happy push the silver connector in to the Grey plastic plug, you should hear a small click and the connector will be installed correctly, repeat this for all four wires

Finally fit the INDICATOR RELAY, this is not always required. Check your flash speed, and if you think it is too fast, then you will need to fit the relay.

The relay is housed under the headstock (speedo). To remove start with the 2x screws either side of the Chrome light trim, next under the headset locate the 2x philips screws, undo these.

Gently pull the top cover up from the rear and backwards at the same time. You will not have to disturb and any of the wires or fixings.

The relay is easy to replace and is plug and play

Further help with fitting the SmartSpeed66 indicator kit is available on SmartSpeed66@gmail.com, please send your phone number in the email with a description of any problems
