SmartSpeed66

We have done it again.

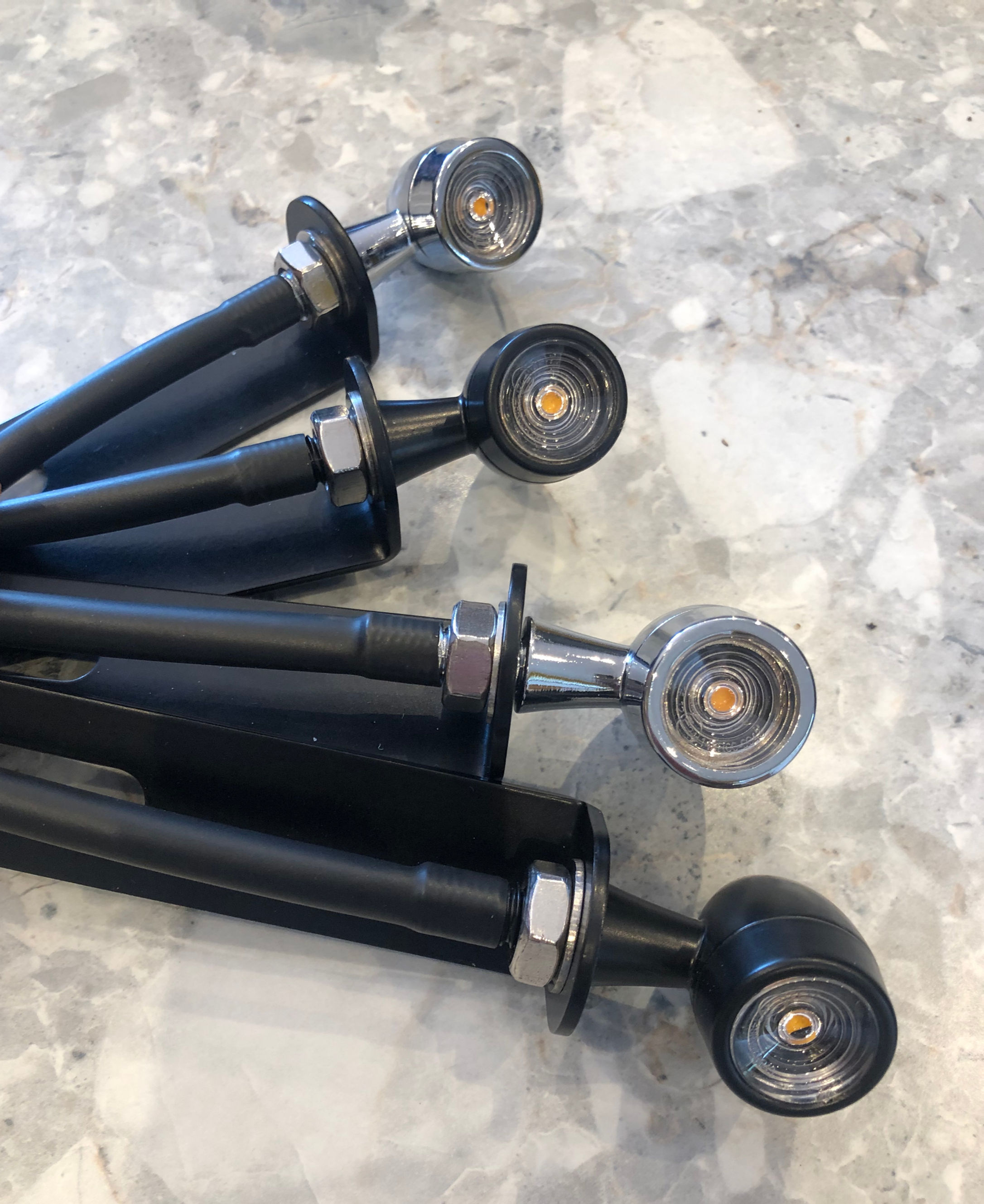

SmartSpeed66 No NoNonsense rear indicator bar with Chrome or Black indicators, for GP and TG

Beautiful Stainless rear Bar powder coated in black, made to OUR measurements.

Spaced perfectly to allow panel removal

Designed to fit behind the number plate using existing holes, and plugs directly in to the original Royal Alloy wiring loom. Pre-assembled

We also include an idicator relay, we have found on some models the flash speed can increase, so we have sorted that with our own easy to fit relay

Comes complete with:

Rear Stainless black bar, for GP or TG

Chrome or Black rear indicators

All wiring and plugs, pre assembled

Stainless nuts and bolts

Spacers to clear number plate away from the bodywork (this prevents the build up of road muck that start corrosion)

A indicator relay

Easy to fit and remove if using on another scooter

NO NONSENSE

Select from the drop down menu for Royal Alloy GP or TG in Black or Silver Indicators

This is for the SmartSpeed66 indicator bar ONLY, other kits are listed to replace your holes with a choice of Items

FREE POSTAGE TO THE UK

SmartSpeed66 NoNonsense rear indicator bar for GP and TG

Name: SmartSpeed66 NoNonsense rear indicator bar for GP and TG
Price: 54.99 GBP
Availability: InStock

£54.99

NoNonsense Indicator Bar

Quantity

Do not rush the install, it is easy and requires only a 10mm and 8mm socket , but be patient and read the instructions for an easy install

Firstly remove your number plate and fixings and clean the area thoroughly

Then remove your rear light, this is held on by the 2 x 8mm nuts (Not the 2x 10mm ones) . You can leave it plugged in, as it only needs to come forward a small amount

Assembly of the indicator bar

The two bent ends of the bar face backwards towards the scooter

Next offer the bar up to the scooter and add the number plate, thread the wires behind the rear light unit and through the wiring hole. Use the bolts and add the spacer ( spacer goes between the scooter and the bracket)

You can the tighten it all up, using the 10mm nuts provided.Some RAs had three number plate bolts, if so we have provided enough spacers and bolts for all three.

Final Assembly

Click the rear indicator plugs in to the RA wiring loom, Take care when pushing the two connectors together no need for any force, just take your time and wiggle the connector a bit if required. Check that all the indicators and Hazards work Correctly.

Relay Instalation

Finally fit the INDICATOR RELAY, this is not always required. Check your flash speed, and if you think it is too fast, then you will need to fit the relay.The relay is housed under the headstock (speedo). To remove start with the 2x screws either side of the Chrome light trim, next under the headset locate the 2x philips screws, undo these.Gently pull the top cover up from the rear and backwards at the same time. You will not have to disturb and any of the wires or fixings. Do not unplug the top speedo housing, place a rag over the paint work to protect it and place it to one side.

When you Identify the relay, it looks like our relay it is easy to replace and is plug and play

Use the cable ties provided to secure the wiring to the Scooter frame

SmartSpeed66 NoNonsense rear indicator bar for GP and TG

Instructions
